MPPT1575-DCLI
15A MPPT SOLAR STREET LIGHT CONTROLLER
MPPT, 20A, 12V/24V.Max input power 80W/32V；160W/6.4V,Max volt on PV terminal：13~30V
- Innovative MPPT technology, tracking efficiency >99.9%
- Full digital technology, conversion efficiency up to 92.5%
- Can output constant current
- 5 stages time and dimming can be adjusted
- Can read parameters and running status
- lf battery voltage is low, it can be set to dimming
- Dimming start voltage and percentage can be set
- Day/Night threshold can adjust automatically
- Suitable for single、two Lithium battery
- Auto sleeping during transportation
- Low temperature charging protection
- When BMS power off because of LVD, it can activate the
- system automatically
- Charging target voltage and recovery voltage can be set
- Remote Unit to configure, with LCD display
- IP67, Strong and durable aluminum case
- Full automatic electronic protect function

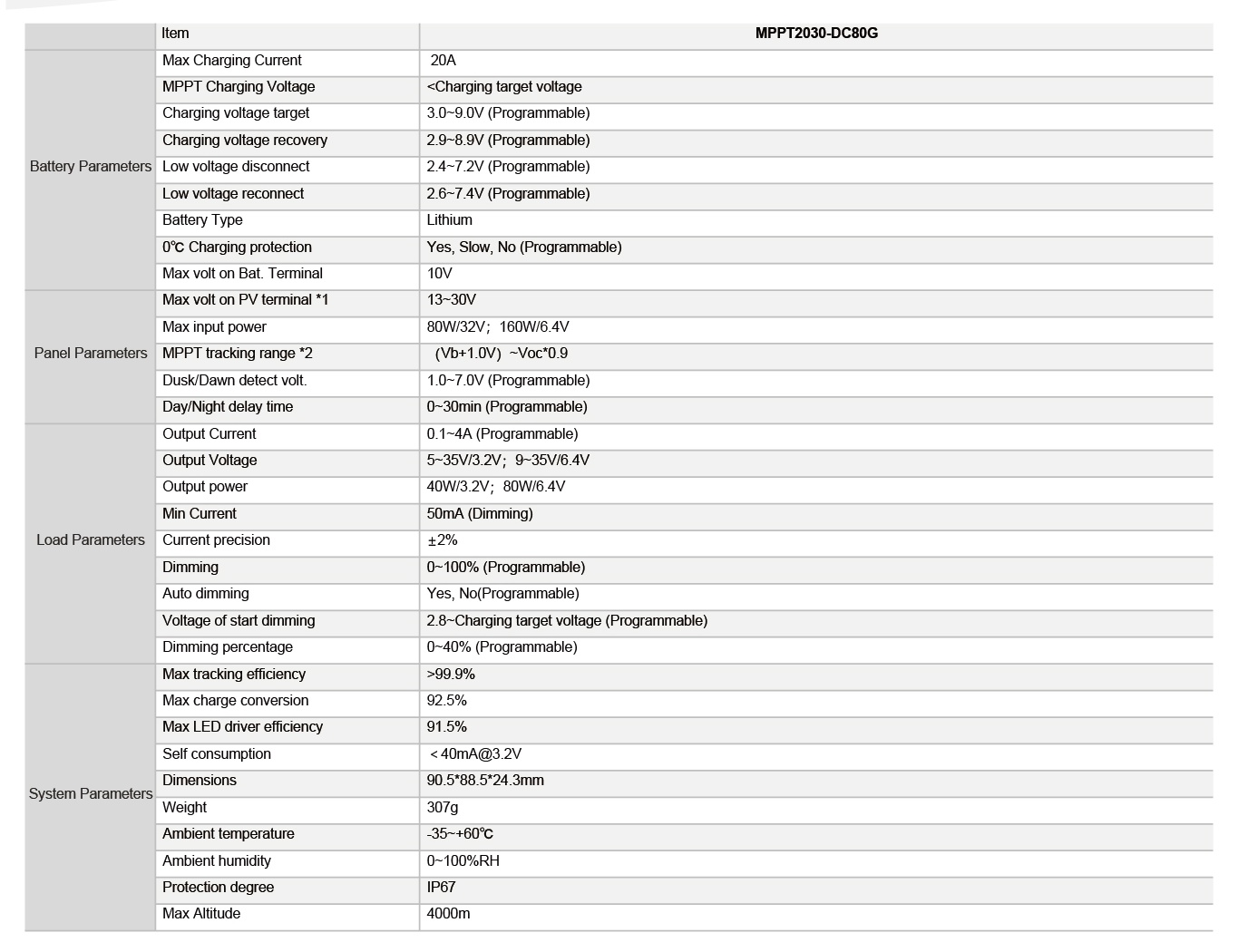

| Item | MPPT2030-DC80G | |
| Battery Parameters | Max Charging Current | 20A |
| MPPT Charging Voltage | <Charging target voltage | |
| Charging voltage target | 3.0~9.0V (Programmable) | |
| Charging voltage recovery | 2.9~8.9V (Programmable) | |
| Low voltage disconnect | 2.4~7.2V (Programmable) | |
| Low voltage reconnect | 2.6~7.4V (Programmable) | |
| Battery Type | Lithium | |
| 0℃ Charging protection | Yes, Slow, No (Programmable) | |
| Max volt on Bat. Terminal | 10V | |
| Panel Parameters | Max volt on PV terminal *1 | 13~30V |
| Max input power | 80W/32V；160W/6.4V | |
| MPPT tracking range *2 | （Vb+1.0V）~Voc*0.9 | |
| Dusk/Dawn detect volt. | 1.0~7.0V (Programmable) | |
| Day/Night delay time | 0~30min (Programmable) | |
| Load Parameters | Output Current | 0.1~4A (Programmable) |
| Output Voltage | 5~35V/3.2V；9~35V/6.4V | |
| Output power | 40W/3.2V；80W/6.4V | |
| Min Current | 50mA (Dimming) | |
| Current precision | ±2% | |
| Dimming | 0~100% (Programmable) | |
| Auto dimming | Yes, No(Programmable) | |
| Voltage of start dimming | 2.8~Charging target voltage (Programmable) | |
| Dimming percentage | 0~40% (Programmable) | |
| System Parameters | Max tracking efficiency | >99.9% |
| Max charge conversion | 92.5% | |
| Max LED driver efficiency | 91.5% | |
| Self consumption | ＜40mA@3.2V | |
| Dimensions | 90.5*88.5*24.3mm | |
| Weight | 307g | |
| Ambient temperature | -35~+60℃ | |
| Ambient humidity | 0~100%RH | |
| Protection degree | IP67 | |
| Max Altitude | 4000m |
