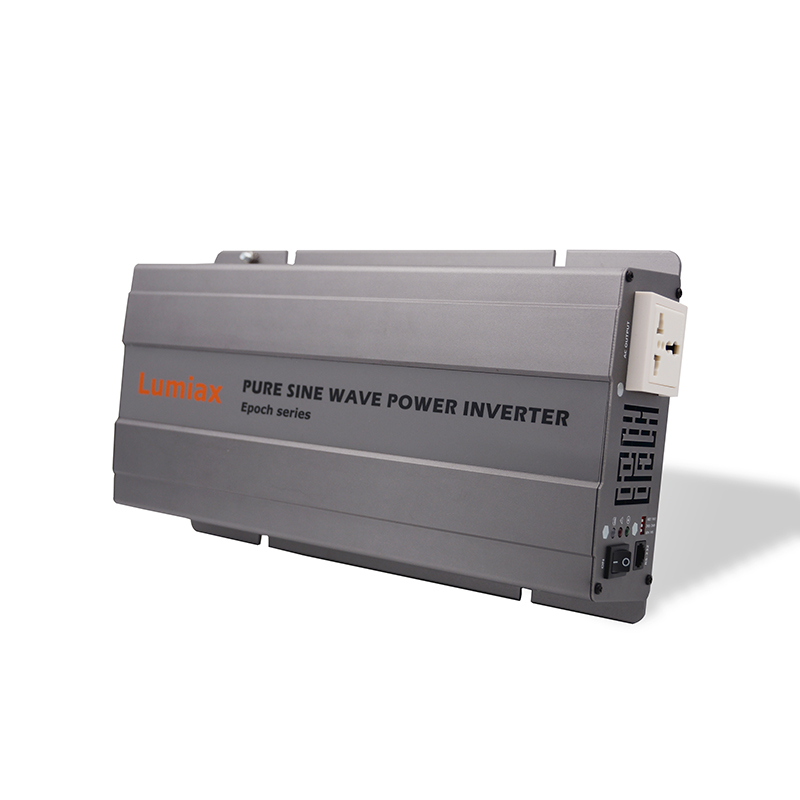

EP1500-12X
1200W 12V TO 220V/230VAC PURE SINE WAVE INVERTER
Single phase Pure sine wave inverter
Surge Power <2400W,Frequency50/60Hz
Inverter 12 v to 220 v pure sine wave
- Adoption of advanced SPWM technology, pure sine wave output
- Dynamic current loop control technology to ensure inverter reliable operation
- Wide DC input voltage range
- Low output harmonic distortion(THD≤2%)
- LED indicators for input voltage range, normal output & failure state
- Extensive protections: short-circuit, overload, under/over input voltage, over-temperature, and inverter's inner fault identification protections
- The output voltage and frequency can be switched
- Complete isolation-type inverter technology
- Optional energy SAV mode(saving mode)
- Wide working temperature range (industrial level)
- Continuous operation at full power
| Item | EP600-12X | |||||||||||||||
| Electrical Parameters | ||||||||||||||||
| Input rated voltage | 12V | |||||||||||||||
| Input voltage range | 10.8~15.5Vdc | |||||||||||||||
| No load current | ≤0.5A@24Vdc | |||||||||||||||
| Output voltage | 110/120Vac | |||||||||||||||
| Continuous power | 600W | |||||||||||||||
| Power 60sec | 750~1200W | |||||||||||||||
| Power 10sec | / | |||||||||||||||
| Power 1.5sec | 1800W-2400W | |||||||||||||||
| Surge Power | <2400W | |||||||||||||||
| Output Mode | Single-phase electricity | |||||||||||||||
| Output wave | Pure sine wave | |||||||||||||||
| Frequency | 50/60Hz | |||||||||||||||
| Diatortion THD | THD≤2%(Resisitive load) | |||||||||||||||
| Efficiency at full load *1 | >92% | |||||||||||||||
| Max. efficiency *2 | ≥93.5% | |||||||||||||||
| SAV mode | / | |||||||||||||||
| DC current | 100A | |||||||||||||||
| Shutdown status | ＜1mA | |||||||||||||||
| Fuse | 200A | |||||||||||||||
| Environment Parameters | ||||||||||||||||
| Dimension | 331*248*99mm | |||||||||||||||
| Hole Size | φ7mm | |||||||||||||||
| Weight | 4.1Kg | |||||||||||||||
| Working temperature | -20℃~+50℃ | |||||||||||||||
| Storage temperature | -35℃~+70℃ | |||||||||||||||
| Humidity | ＜95%(N.C.) | |||||||||||||||
| Altitude |
＜5000m（Derating to
operate accoding to IEC62040 at a height exceeding 1000m） |
|||||||||||||||
| Other Parameters | ||||||||||||||||
| Insulation | Between AC output/DC input terminals and metal case: ≥550MΩ | |||||||||||||||
| Dielectric strenth |
Between AC output/DC
input terminals and metal case: Test voltage AC1500V, 1min |
|||||||||||||||
| Application | Household appliances, cars, solar system and so on | |||||||||||||||
