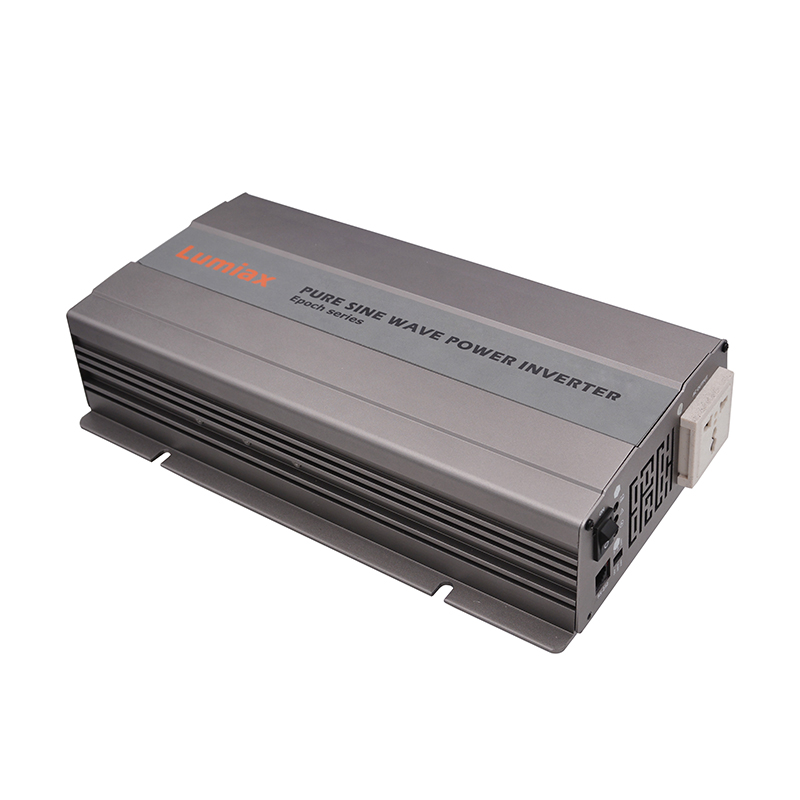

EP1000-22X
1000W 24V TO 220V/230VAC PURE SINE WAVE INVERTER
Single phase Pure sine wave inverter
Surge Power <2000W,Frequency50/60Hz
Off grid solar inverter 1000w
- Adoption of advanced SPWM technology, pure sine wave output
- Dynamic current loop control technology to ensure inverter reliable operation
- Wide DC input voltage range
- Low output harmonic distortion(THD≤2%)
- LED indicators for input voltage range, normal output & failure state
- Extensive protections: short-circuit, overload, under/over input voltage, over-temperature, and inverter's inner fault identification protections
- The output voltage and frequency can be switched
- Complete isolation-type inverter technology
- Optional energy SAV mode(saving mode)
- Wide working temperature range (industrial level)
- Continuous operation at full power
| Item | EP1000-22X | |||||||||||||||
| Electrical Parameters | ||||||||||||||||
| Input rated voltage | 24V | |||||||||||||||
| Input voltage range | 21~30.5Vdc | |||||||||||||||
| No load current | ≤0.5A@24Vdc | |||||||||||||||
| Output voltage | 220/230Vac | |||||||||||||||
| Continuous power | 1000W | |||||||||||||||
| Power 60sec | 1100~1300W | |||||||||||||||
| Power 10sec | / | |||||||||||||||
| Power 1.5sec | >1300W | |||||||||||||||
| Surge Power | <2000W | |||||||||||||||
| Output Mode | Single-phase electricity | |||||||||||||||
| Output wave | Pure sine wave | |||||||||||||||
| Frequency | 50/60Hz | |||||||||||||||
| Diatortion THD | THD≤2%(Resisitive load) | |||||||||||||||
| Efficiency at full load *1 | >92% | |||||||||||||||
| Max. efficiency *2 | ≥94% | |||||||||||||||
| SAV mode |
0.2A; The load is
detected every 10sec, if the output power is greaterthan 20W, it will output continuously |
|||||||||||||||
| DC current | 50A | |||||||||||||||
| Shutdown status | ＜1mA | |||||||||||||||
| Fuse | 30A*3 | |||||||||||||||
| Environment Parameters | ||||||||||||||||
| Dimension | 383*189*73mm | |||||||||||||||
| Hole Size | φ7mm | |||||||||||||||
| Weight | 3.1Kg | |||||||||||||||
| Working temperature | -20℃~+50℃ | |||||||||||||||
| Storage temperature | -35℃~+70℃ | |||||||||||||||
| Humidity | ＜95%(N.C.) | |||||||||||||||
| Altitude |
＜5000m（Derating to
operate accoding to IEC62040 at a height exceeding 1000m） |
|||||||||||||||
| Other Parameters | ||||||||||||||||
| Insulation | Between AC output/DC input terminals and metal case: ≥550MΩ | |||||||||||||||
| Dielectric strenth |
Between AC output/DC
input terminals and metal case: Test voltage AC1500V, 1min |
|||||||||||||||
| Application | Household appliances, cars, solar system and so on | |||||||||||||||
