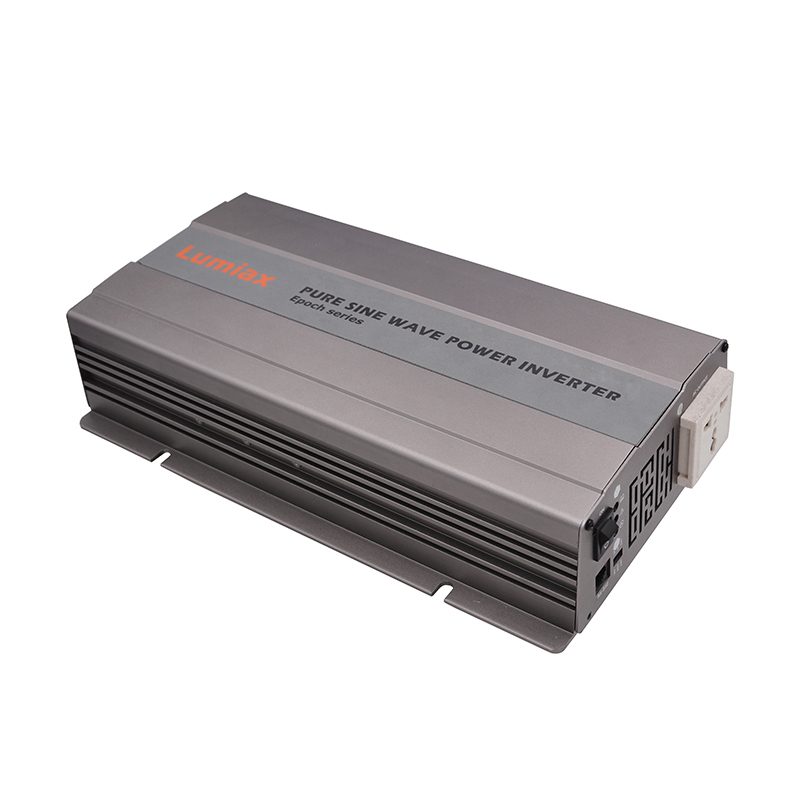

EP1000-21X
1000W 24V TO 110V/120VAC PURE SINE WAVE INVERTER
Single phase Pure sine wave inverter
Surge Power <2000W,Frequency50/60Hz
Inverter solar off grid 24v
- Adoption of advanced SPWM technology, pure sine wave output
- Dynamic current loop control technology to ensure inverter reliable operation
- Wide DC input voltage range
- Low output harmonic distortion(THD≤2%)
- LED indicators for input voltage range, normal output & failure state
- Extensive protections: short-circuit, overload, under/over input voltage, over-temperature, and inverter's inner fault identification protections
- The output voltage and frequency can be switched
- Complete isolation-type inverter technology
- Optional energy SAV mode(saving mode)
- Wide working temperature range (industrial level)
- Continuous operation at full power
| Item | EP1000-21X | EP1000-22X |
| Electrical Parameters | ||
| Input rated voltage | 24V | |
| Input voltage range | 21~31Vdc | |
| No load current | ≤0.5A@24Vdc | |
| Output voltage | 110/120Vac | 220/230Vac |
| Continuous power | 1000W | |
| Continuous 15 minutes of output power | / | / |
| Power 15min | / | |
| Power 60sec | 1100~1300W | |
| Power 10sec | / | |
| Power 1.5sec | 1300W | |
| Surge Power | <2000W | |
| Output Mode | Single-phase electricity | |
| Output wave | Pure sine wave | |
| Frequency | 50/60Hz | |
| Diatortion THD | THD≤2%(Resisitive load) | |
| Efficiency at full load *1 | 92% | |
| Max. efficiency *2 | 93% | 94.0% |
| SAV mode |
0.2A; The load is detected every 10sec, if the output power is greaterthan 20W, it will output continuously |
|
| DC current | 50A | |
| Shutdown status | ＜1mA | |
| Fuse | 100A*1 | |
| Environment Parameters | ||
| Dimension | 366.4*189*73.2mm | |
| Hole Size | φ7mm | |
| Net weight | 3.1Kg | |
| Working temperature | -20℃~+50℃ | |
| Storage temperature | -35℃~+70℃ | |
| Humidity | ＜95%(N.C.) | |
| Altitude |
＜5000m（Derating to operate accoding to IEC62040 at a height exceeding 1000m） |
|
| Other Parameters | ||
| Insulation | Between AC output/DC input terminals and metal case: ≥550MΩ | |
| Dielectric strenth |
Between AC output/DC input terminals and metal case: Test voltage AC1500V, 1min |
|
| Application | Household appliances, cars, solar system and so on | |
